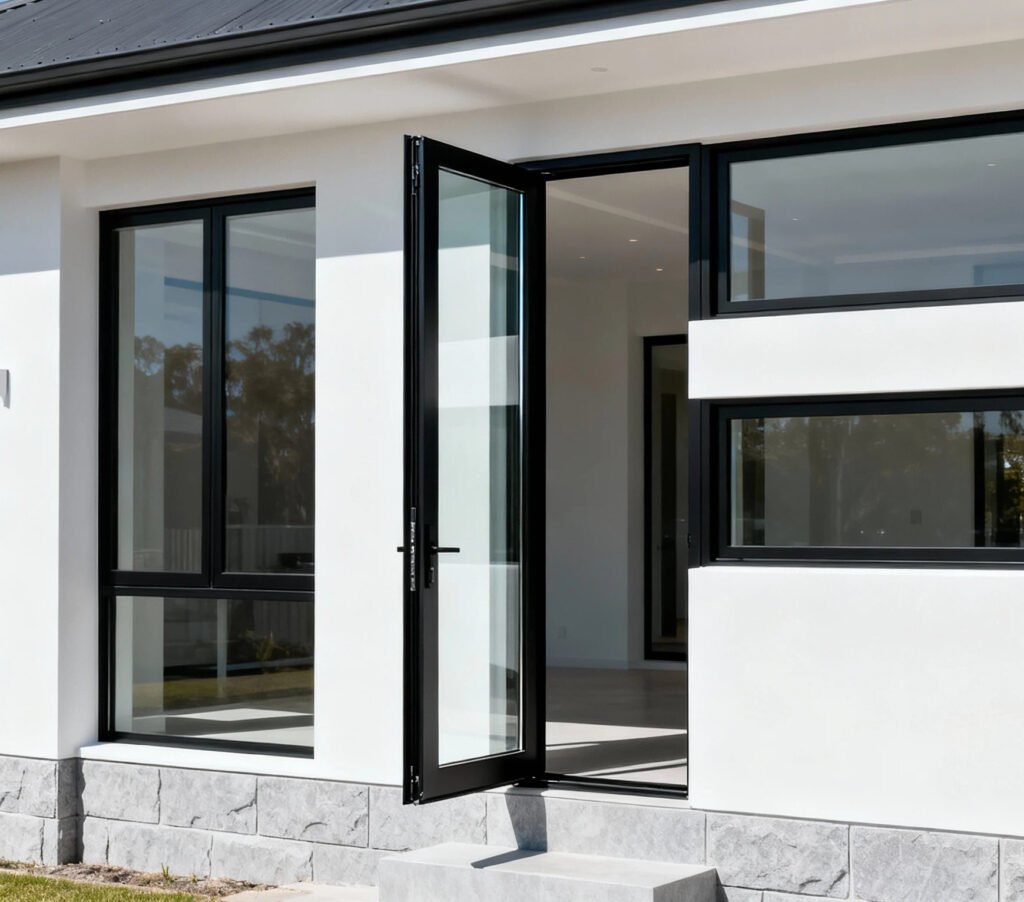

MA100 Hinged Door

MA100 Hinged Door

Designed for Australia, the MA100 aluminium non-thermal break hinged door system meets AS2047 / AS4284 / AS1288 standards, suited for offices, shops, and homes with strong sealing and security.
Glazing rebate depth: 39mm
Frame visible surface: 35mm
Glass specifications:
5mm+18Ar+5mm
6mm+18Ar+6mm
8mm+12Ar+8mm
Glass Configuration:
Clear
Fluted Glass
Custom Coating Colors
Obscured Glass
Single Panel Silver Low-E
Double Silver Low-E
Ultra Clear
Single Panel Bule Low-E
Hardware:
KINLONG
Doric (Only for use without a flyscreen)
Standard Color
Pearl White
2721114G
Monument
2729066M
Black Mall
27219320
Other colors
can be customized
Standard Equipment
Optional Equipment
MAXIMUM PERFORMANCE

Water Tightness :
600Pa

Ultimate Pressure :
Positive – 2000Pa
Negative – 2000Pa

Air Tightness :
Sealed
Positive – 75Pa – 5.51Ls⁻¹
Negative – 75Pa – 6.35Ls⁻¹
Unsealaed
Positive – 75Pa – 5.67Ls⁻¹
Negative – 75Pa – 6.56Ls⁻¹
Net Leakage
Positive – 75Pa – 0.03Ls-1m⁻²
Negative – 75Pa – 0.03Ls-1m⁻²

GLAZING
5+12A+5
Visible Trans: 76%
U-Value:
Winter Nighttime -1.86W/m²k
Summer Daytime – 1.83W/m²k

8+12A+8
Visible Trans: 84%
U-Value:
Winter Nighttime -2.73W/m²k
Summer Daytime – 2.72W/m²k

Project Presentation
