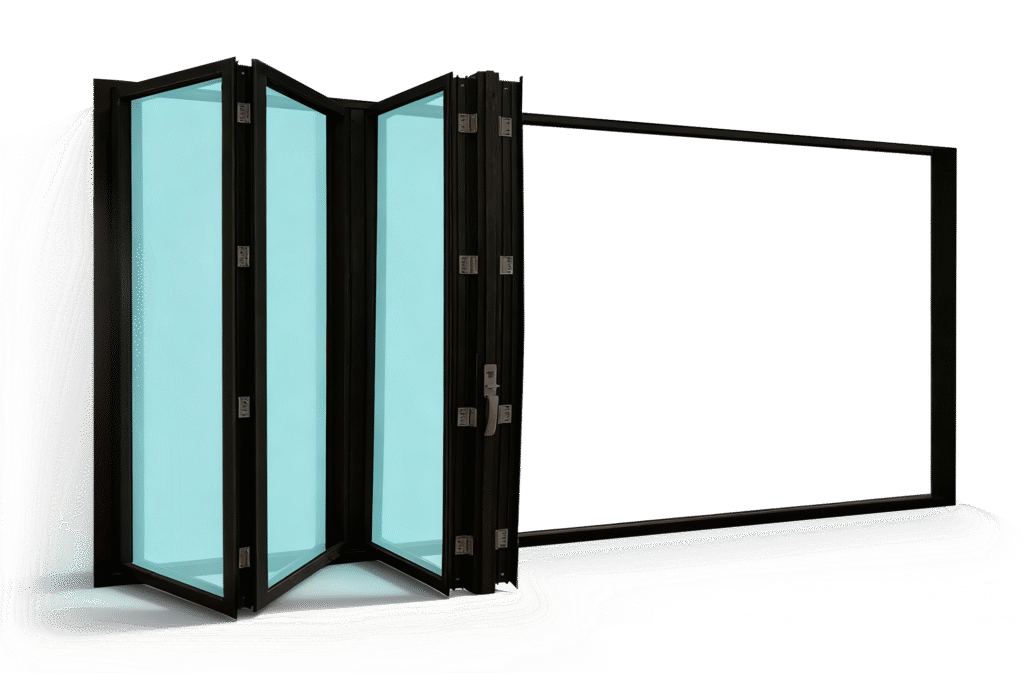

MC80-Bi-Fold Door

MC80-Bi-Fold Door

This Series bifold doors offer elegant design, available in vari ous colors and styles. They provide smooth operation, saving space while ensuring thermal insulation and moisture resistance. Lightweight yet durable, these doors are easy to install and require minimal maintenance, offering lasting performance and comfort.
Glazing rebate depth: 42mm
Frame visible surface: 48mm
Glass specifications:
6mm+21Ar+6mm
8mm+18Ar+8mm
Glass Configuration:
Clear
Fluted Glass
Custom Coating Colors
Obscured Glass
Single Panel Silver Low-E
Double Silver Low-E
Ultra Clear
Single Panel Bule Low-E
Hardware:
KSBG
Standard Color
Pearl White
2721114G
Monument
2729066M
Black Mall
27219320
Other colors
can be customized
Standard Equipment
Optional Equipment
MAXIMUM PERFORMANCE

Water Tightness :
350Pa

Ultimate Pressure :
Positive – 2000Pa
Negative – 2000Pa

Air Tightness :
Sealed
Positive – 75Pa – 57.39Ls⁻¹
Negative – 75Pa – 84.84Ls⁻¹

Unsealaed
Positive – 75Pa – 70.79Ls⁻¹
Negative – 75Pa – 140.58Ls⁻¹

Net Leakage
Positive – 75Pa – 13.40Ls⁻¹
Negative – 75Pa – 55.74Ls⁻¹

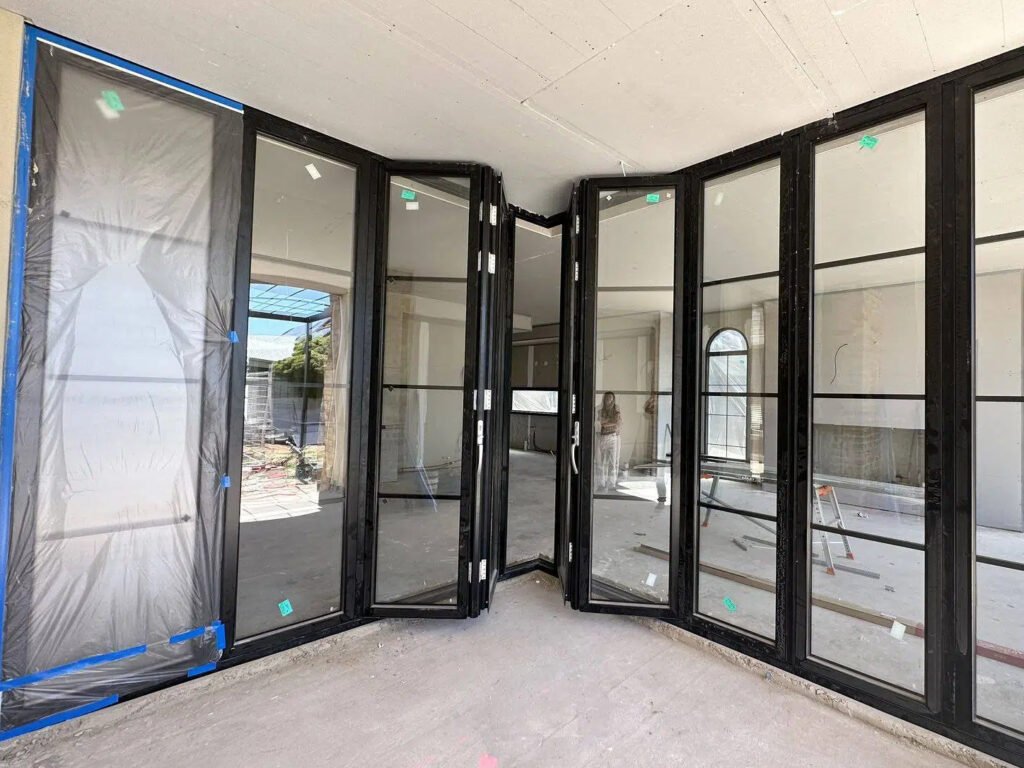

Project Presentation
